VTA0030B
Potentiometer for iBlueDrive devices
Order ref.: VTA0030B
The new VTA0030B digital potentiometer is an iBlueDrive accessory to dimmer and turns ON and OFF one or more iBlueDrive lamps in continuous mode.
It controls and regulates the lighting intensity of iBlueDrive devices in Continuous mode, adjusting from 0% to 100% the lighting output and offers the option of saving that value for next switching on.
Specifications
| Dimensions (WxHxD) | 37x37x17 mm |
| Weight | 25g |
| Max power consumption | 0.52W Excludes lighting system consumption. |
| Operating voltage | 24VDC ± 8% |
| Simultaneity | Up to 20 lighting systems. |
| Case protection | IP40 |
| Material | ABS |
| Fixing | 2x M3x0.5 Bolts(included) |

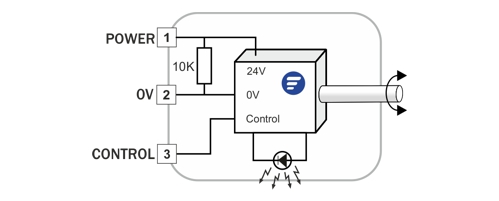

Simplified circuit

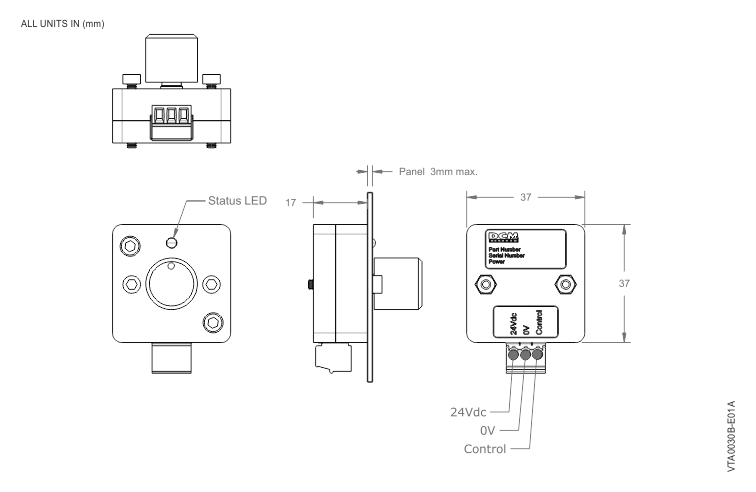

Main Dimensions
Downloads
