VTA0020A

Optocoupler for iBlueDrive devices

Order ref.:VTA0020A

iBlueDrive VTA0020A isolates the output of lighting systems with iBlueDrive technology. It is designed to operate reliably in industrial environments.

It is recommended to use iBlueDrive VTA0020A with iBlueDrive devices when connecting the trigger signal or controlling the light source.

VTA0020A

Specifications

Dimensions (WxHxD) 17.7x90x60 mm
Weight 35g
Maximum consumption 7mA
Excludes lighting system consumption
Operating voltage 24VDC ± 8%
Simultaneity Up to 20 lighting systems.
Case protection IP20
Material PC, PC-GF30%
Fixing Mountable to 35mm DIN rail according to DIN EN 50022

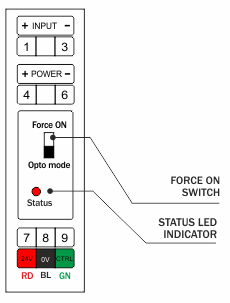

front with indications

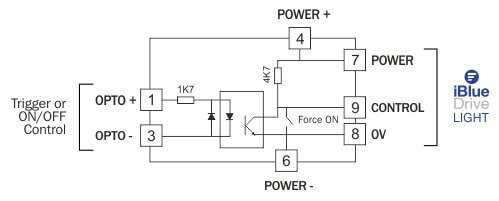

Simplified circuit

Circuito simplificado VTA0020A

Downloads

VTA0020A_quickguide_.pdf
Standard devices quickguide (VTA0020A)
