VPC
Antiglare Filter
This filter is specially designed for the ALB and ALU series. It allows the system to eliminate specular surfaces and obtain very good quality images.
It is composed by two matched filters, one for the light and one for the camera, which reject direct reflects produced by shining surfaces and avoid glares produced by the light. This filter does not need to be adjusted. It is already adjusted from factory. Also, you will earn money as light and optic filter are combined in one.
How to order a VPC filter?
They are purchased as an accessory (VPC + Model), as indicated below
| SERIES | MODEL | Ref. ACCESSORY (accessory to equipment) |
|
|---|---|---|---|
| ALB | ALB0804A | VPCALB0804A | |
| ALB | ALB0810A | VPCALB0804A | |
| ALB | ALB1716A | VPCALB1716A | |
| ALB | ALB1716B | VPCALB1716B | |
| ALU | ALU0502A | VPCALU0502A | |
| ALU | ALU0704A | VPCALU0704A |

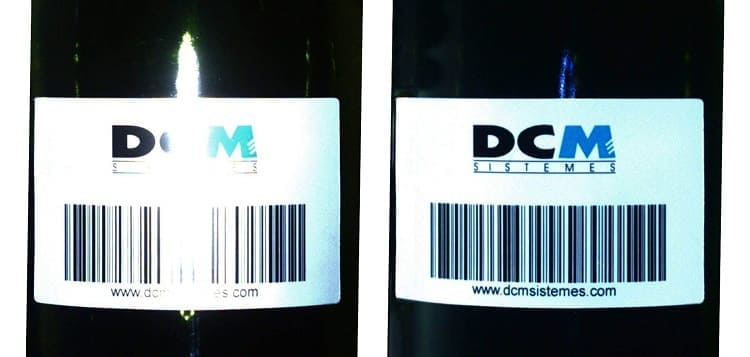

Example of Antiglare Filter with the ALB0804A-W00C

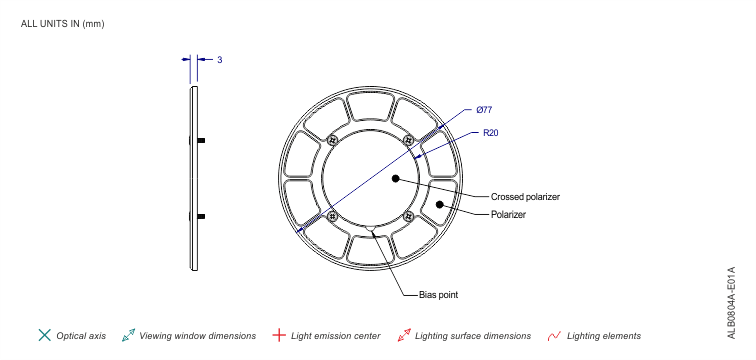

Main Dimensions
Downloads
![]()
3D technical drawing (STP step AP214, IGS iges, SAT Acis R18) (VPCALB0804A)
![]()
DXF technical drawing (VPCALB0804A)
![]()
Assembly (VPCALB0804A)
![]()
PDF technical drawing (VPCALB0804A)
