Specifications

General specifications

External dimensions	262x200x200mm
Active surface	152x250mm
Recommended working distance	<200mm
Available types	Continuous Strobe iBlueDrive
Available lighting colors	470nm 525nm 630nm 850nm RGB W00
...	...

See complete general specifications

Specifications by type

Type (+)	Power supply	Connector	Power cable	External driver (+)
Continuous (C)	24VDC ±3%	2P on chassis	VCB Series (not included)	No
iBluedrive (i)	24VDC ±8%24VDC ±8%	3P on chassis	VCC Series (not included)	No
Strobe (S)	Strobe Controller	2P on chassis	VCB Series (not included)	VST Series (not included)
Strobe (S) RGB	RGB Strobe Controller	4P on chassis	VCD Series (not included)	VSC Series (not included)

Maximum instantaneous consumption* (mA)

Type (+)	Color (+)
	470nm	525nm	630nm	850nm	RGB	W00
Continuous (C)	2200	2200	1595	1595	N/A	2200
iBluedrive (i)	8020	8020	8020	8020	N/A	8020
Strobe (S)	8800	8800	8800	13165	9600 per channel	8800

NOTES
* Refer to operating specifications of each type of lamp. (+ info)

To obtain this product in multiespectral version and/or in other wavelengths please check availability by emailing us or via the contact form.

Page 2

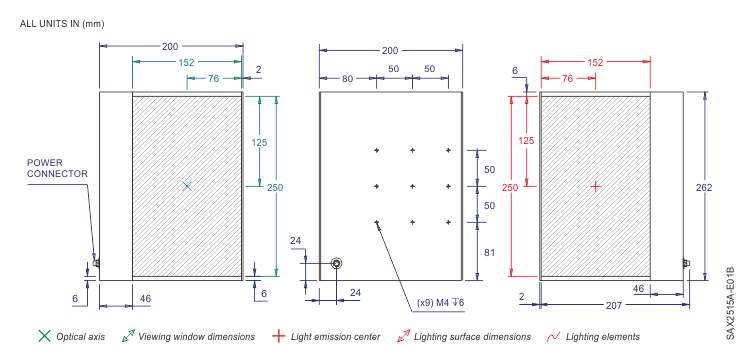

Main Dimensions

Connection

VCB series cable Diagram connection

VCBseries cable Diagram connection

VCC series cable Diagram connection

VCD series cable

Light intensity (Model: SAX2515A-630C )

Page 3
Brightness distribution

Brightness distribution SAX2515A-630C@25mm

SAX2515A-630C@25mm Brightness distribution SAX2515A-630C@50mm

SAX2515A-630C@50mm

Page 4
Part number

The part number is composed by the model, the color, the type of lamp and the modifier. Modifiers are only available in some models and they are optional except in case of the emission angles. In the case where the angle cannot be specified, it will be considered "medium angle".
To obtain this product in multiespectral version and/or in other wavelengths please check availability by emailing us or via the contact form.

Model

SAX2515A

Color (+)

-XXX

- 470 (Blue)

- 525 (Green)

- 630 (Red)

- 850 (IR)

- RGB (RGB)

- W00 (White)

Type (+)

Y

C = Continuous

S = Strobe

i = iBlueDrive

Optional modifiers* (+)

/Zz

/FPL = Polarizer filter

*Consult modifiers code to add it to the part number. (+ info)

Some combinations of the options shown above may not be supported as standard. Use the reference generator to generate a valid reference. For any other combination, please check availability at info@dcmsistemes.com .
