Specifications

General specifications

External dimensions	116x106x22mm
Active surface	100x100mm
Available types	Continuous Strobe iBlueDrive
Available lighting colors	470nm 525nm 630nm 850nm RGB W00
...	...

See complete general specifications

Specifications by type

Type (+)	Power supply	Connector	Power cable	External driver (+)
Continuous (C)	24VDC ±3%	2P on chassis	VCB Series (not included)	No
iBluedrive (i)	24VDC ±8%24VDC ±8%	3P aerial. Length: 150mm	VCC Series (not included)	ST00 / ST01 (IP67)
Strobe (S)	Strobe Controller	2P on chassis	VCB Series (not included)	VST Series (not included)
Strobe (S) RGB	RGB Strobe Controller	4P on chassis	VCD Series (not included)	VSC Series (not included)

Maximum instantaneous consumption* (mA)

Type (+)	Color (+)
	470nm	525nm	630nm	850nm	RGB	W00
Continuous (C)	320	255	290	430	N/A	200
iBluedrive (i)	2004	2004	2020	2020	N/A	2020
Strobe (S)	1920	1920	2560	2400	3000 per channel	2560

NOTES
* Refer to operating specifications of each type of lamp. (+ info)

To obtain this product in multiespectral version and/or in other wavelengths please check availability by emailing us or via the contact form.

Page 2

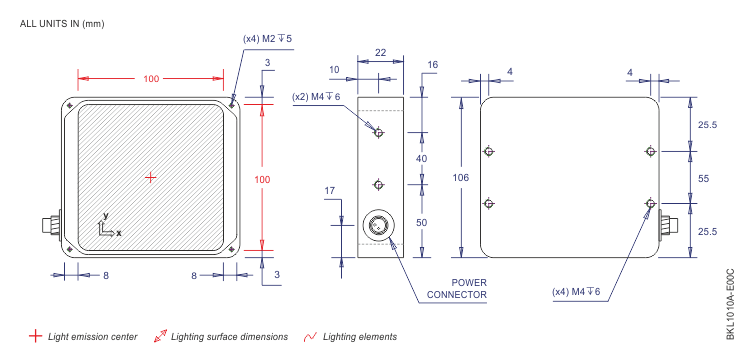

Main Dimensions

Connection

VCB series cable Diagram connection

VCBseries cable Diagram connection

VCC series cable Diagram connection

VCD series cable

Page 3
Brightness distribution

BKL1010A-630C

Page 4
Part number

The part number is composed by the model, the color, the type of lamp and the modifier. Modifiers are only available in some models and they are optional except in case of the emission angles. In the case where the angle cannot be specified, it will be considered "medium angle".
To obtain this product in multiespectral version and/or in other wavelengths please check availability by emailing us or via the contact form.

Model

BKL1010A

Color (+)

-XXX

- 470 (Blue)

- 525 (Green)

- 630 (Red)

- 850 (IR)

- RGB (RGB)

- W00 (White)

Type (+)

Y

C = Continuous

S = Strobe

i = iBlueDrive

Optional modifiers* (+)

/Zz

/65A = IP Rating = IP65

*Consult modifiers code to add it to the part number. (+ info)

Some combinations of the options shown above may not be supported as standard. Use the reference generator to generate a valid reference. For any other combination, please check availability at info@dcmsistemes.com .
